Live in your browser · beta
Model, Solve, Share
in the browser

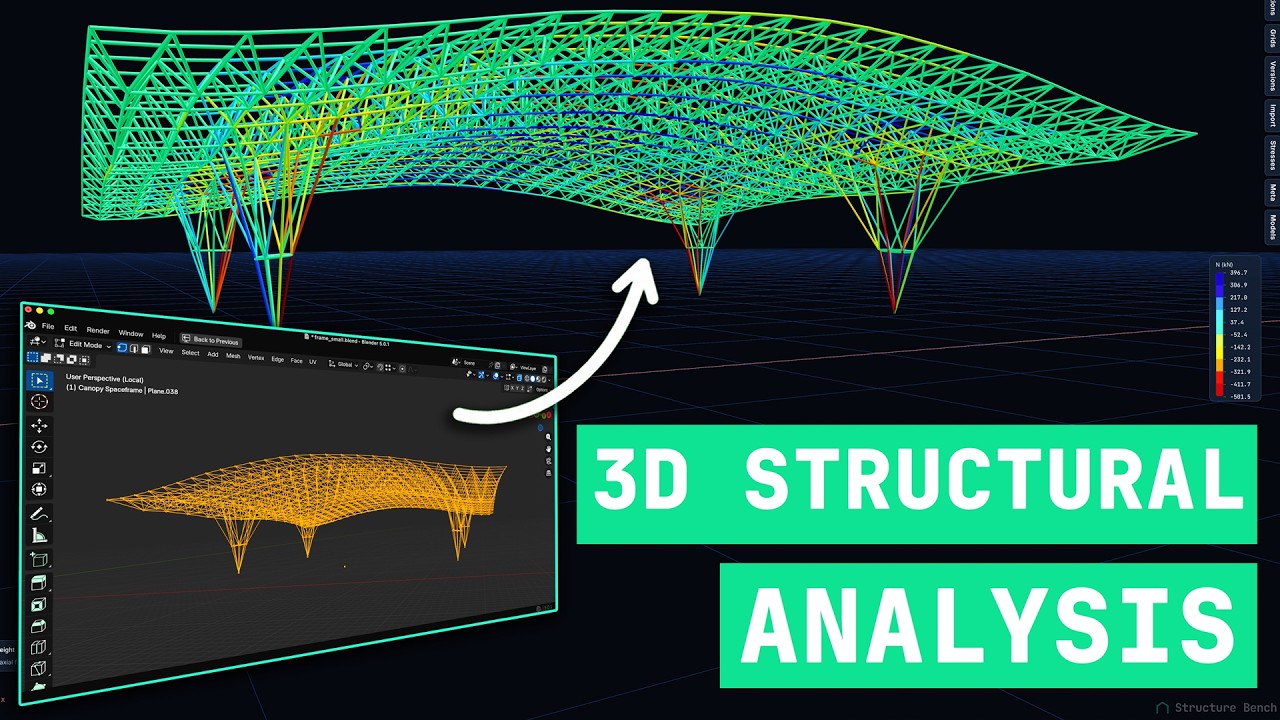

Lightweight, shareable structural analysis that runs in the browser. Nothing to install.
Free, no account needed.
or browse the community library →Simple Portal Frame · from the libraryOpen full screen →
Model it, load it, solve it, send it.
A few minutes, start to finish01
Geometry
Nodes, members, sections. Draw on a snapping grid or type coordinates straight into the tables.
02
Supports & loads
Pins, rollers, fixed bases, springs. Point loads, UDLs, self weight, load cases and combinations.
03
Solve
Results back in seconds. Nothing to install, no licence seat to wait for.
04
Results
Probe forces anywhere along a member, trace the deflected shape, switch load cases and envelopes.
05
Share
One link, opens anywhere, still live. No account needed at the other end, and it embeds in any page.
